MF Hard to Find Parts

Updated 01-21-14

DS43606 MANUAL STEERING KIT.

Fits TO35, MF35 with manual steering. This is a matching set

call

DS61641
MF Power Steering Rack Wear Block & Plate Assembly.
Known applications: MF35, MF135, MF2135, MF20.
Replaces 1751644M1 guide, 17511643M1 Plate, 1751653M1 screws.
$85.48

DS60068
Power Steering cylinder rack. Fits TO35, MF35, MF135 gas & diesel tractors. Replaces 1751665M1.

$111.69

DS60135
Pin for rack #DS60068.
Replaces 1041936M1

$15.42
Front view side view

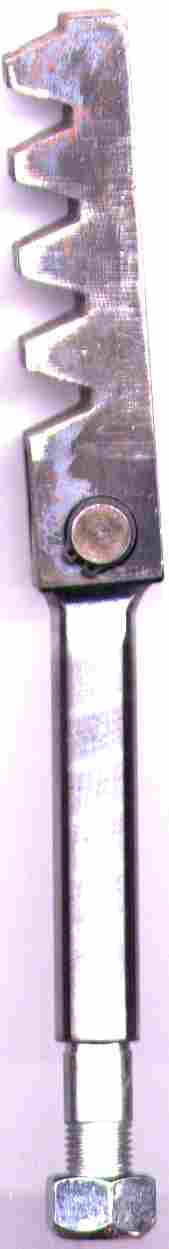

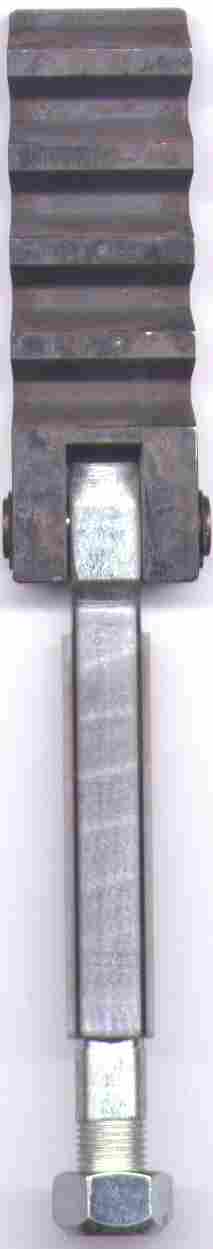

DA1751665M1

Rack, Rod, Nut,Pin, & Snap Rings

Fits TO35, MF35, MF23135 gas & diesel tractors.

Replaces DS60068 AND DS60135

$137.17



DS60463
8 tooth sector gear.  Fits TO35, MF35, MF135, MF2135 with power steering.  Replaces 175289M1.
May be used on manual steering if used as a set with DS60464.

$193.20


DS60464
10 tooth sector gear.  Fits TO35, MF35, MF135, MF2135 with power steering.  Replaces 1752890M1.

May be used on manual steering if used as a set with DS60463.

$220.00


DS42753
Steering controll valve Fits MF35 and MF135 and others of the same size.

Replaces 1018735M92.

Now in stock

Call for price



DS40149


Power steering Pump.  Fits most MF 35, MF135, MF 230, MF 235, MF245 Diesel Tractors with Perkins 3 Cylinder engines.  May fit some others.

Replaces 773126m92

$354.74

D1750073M-kit
MF Rocker Shaft and Bushing Kit.
These bushings are semi-finished.
Known applications:  Continental Engines Z120, Z129, Z134, Z145 as used on MF and Ferguson TO20, TO30, TO35, MF35, MF135, gas engines.

DS60093
Shaft only OEM 1750073M1

In stock





In stock

MF001
Rocker shaft complete. This assembly has been completely rebuilt with new shaft, rocker bushings, machined to fit the new shaft, & the rocker tips refaced. Complete with posts ready to install on your motor.

This price is exchange for a rebuild able core. If your rocker post or rocker is damaged beyond rebuilding, call for core adjustment prices.

Fits all MF gas engines, Z120, Z129, Z134, Z145.

In stock

DS60327

Rocker bushings. 8 used per engine.
We now have these bushing back in stock!
The manufacturer no longer is making these bushings, so we did !
The bushings are semi finished and must be machined after installing in the rockers.


IN STOCK
$9.50
D1750055M1
4 used per engine priced per each.
Rocker post-when available (Used)
LIMITED SUPPLY
$69.00

Picture for identificationurposes

DA836543M1
Camshaft
Fits engineZ120, Z129, Z134

Picture for identification purposes

$179.95

DA1027656M1
Camshaft
Fits engine Z145 ONLY

Picture for identification purposes
$209.82
  D1750111M1
8 used per engine
Resurfaced tappet priced per each
Fits Z120, Z129, Z134, Z145 Engine
OUTRIGHT PURCHASE
$26.50 EACH
or $8.00 EACH EXCHANGE


DBR204
Gray back rest complete.



$34.71



DMFCC12
Gray seat cushion with straps.

$54.53





DBR205
Black back rest complete.

$36.96



DMFCC13
Black seat cushion with straps.

$57.53



DS43234
Pan and seat cushion kit. This kit is designed to replace your old rusted pan and includes the cushions.

Fits all MF tractors with OEM bucket seats

$157.00

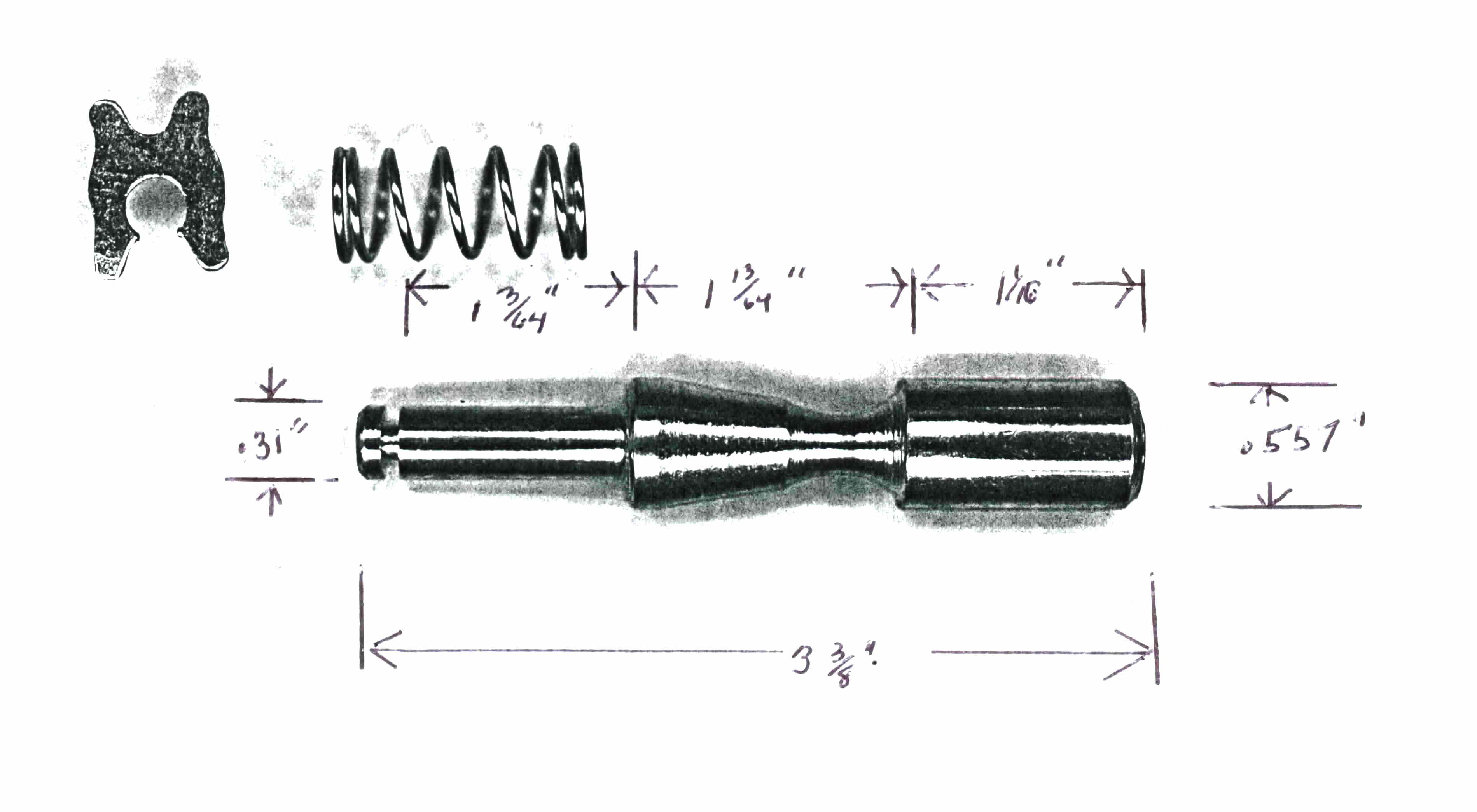

DQDK1
Replacement Quick Detach Pin for PTO yokes.  This pin fits the old style quick detach yokes.  This pin saves you the expense of upgrading your older type PTO yokes. Total length is 3.40". Includes all parts shown.
$12.25


DS61622
Pulley for most 3 cylinder Perkins engines.  Designed to use drive hub DS61632.
$97.08


DS61632
Three bolt drive hub for front mount hydraulic pumps.
Center drive hole is 3/4"x10 LH thread.
Use with DS61622 and OEM pulleys.
Same as DA704812M93
Used on perkins 3 cyl engines.
Replacment bushings are #D1400022M91
$105.22


DS44982
Continental front crank pulley.  Fits TO35, MF35, MH50, MF50, 35 TURF, 202, 204 W/Continental engines. Does not fit TO20 & TO30 tractors. Has 4 7/16 threaded bolt holes for drive hub. Mounting circle 2 3/4".
Can replaces 734628M1, 182735 &1750076M1
$70.72
. DA54C2055
Drive hub 6 spline for DS44982.
BOLT HOLES ARE APROX 1.98" APART.
use with DA194354 or 194355 shafts below.
Will fit DS44982 pulley
$57.24
.. DA194354
6 spline shaft, 13.06" long. Keyed end is 3/4" .187 keuway
Used with DA54C2055 hub
$29.90
.18 DA194355
6 Spline shaft, 9.19" long. Keyed end is 3/4". .187 Keyway
Used with DA54C2055 hub
$28.82
DL601-9
Flex coupler kit. Includes 2 flanges with 3/4" keyed bores. center flex coupler and bolts & nuts.
Used with shaft DA194354 and DA194355 or any keyed shaft with 3/4 dia. A must for many older loader front pump drives. Bolts are 5/16 dia spaced at 2 1/4" on hub

$85.56





DA192199
drive flange for DL601-9.. 3/4" keyed center hole. (2 ) 5/16" bolt holes spaced 2 1/4" apart.

$21.53



DA291061
13 spline hub will fit Pulley DS44982
Four 7/16 bolt holes mounted in vibration bushings
Bolt hole spacing is aprox 1.954"
Will spline onto DA291951, DA7701044, DA292222.
$47.77
DA291951
13 spline on both ends. 13.62" long. 7/8" dia
Use with hub DA291061

$44.48



DA7701044
13 spline on both ends. 11.62" long 7/8" dis
Use with hub DA291061
$42.77

DA292222
13 spline on both ends. 10.38" long. 7/8" dia.
Use with hub DA291061

$36.13

DA7707570
Coupler used to couple shaft DA291951, DA7701044, DA292222 to hyd pump.
3" long x 1 3/8" od x 7/8 13 id spline

$53.65
DA290421
1" 10 Spline hub with rubber bushings. (4) 7/16 bolt holes.
used wuth DA195454 & 197118 shaft

$47.24



DA197118
1" 10 spline one end and 3/4" round keyed on the other end. shaft is 8 3/8" long
Use with hub DA290421 hub.
$43.48

DA195454
1" 10 Spline one end and 3/4" round keyed on the other end. Shaft is 9 3/8" long

$36.57

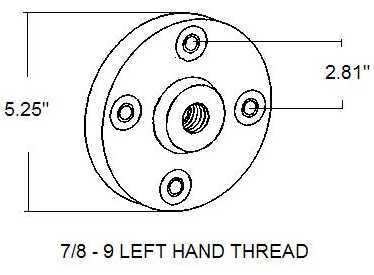

DS61639
Four bolt drive hub for front mount hydraulic  pumps. Mounting bolts are on a 4" circle.
Center hole is 7/8x9 LH thread.
Check sizes before ordering!
Replaces 708639m91 &708640M1 hub
Will not fit pulley DS44982
Will not fit Continental Motors
$173.88
DS42775
Three bolt front pulley.  Fit TO35, MF35, 50,135, (230 >SN9A349239), (235, 245>SN9A349239) and some others. For Continental motors Z134 and Z145 only. Replaces 182735m1 & 1750076m1. Designed to use hub # DS61632.
Will not fit TO20 & TO30
$70.72

DMFS112
BACK IN STOCK AGAIN--- IMPROVED 1 PC CASTING

Pulley for TO20 & TO30 Continental engines. Pulley has 4 7/16 tapped holes for pump drive flange. Can be used with DA54C2055, or DA291061, or DA290421 drive flanges.
Comes with a new mounting bolt and washer.

$162.10

DA190753
Rubber bushings used with DA191196 drive hub.
4 required per drive hub.

$2.42 each

DA191196
Drive hub for front mount pumps used on TO20 & TO30 tractors with loaders.
5/8-18LH thread in center hole
Use with DA190760 shaft on pulley DMFS112 pulley

$40.56



DA190760
Drive shaft used on TO20 & TO30 tractors
Use with hub DA191196 hub on pulley
DMFS112 13.6" long.- .750" dia.-5/8-18 LH thread.- .187 key way.
W ILL NOT FIT HUB DS61632

$21.50
D704997M92
ROUND BORE KEYED PUMP DRIVE SHAFT.
3/4-10NC LEFT HAND THREAD. 11.38" LONG.
3/4" KEYED COUPLER BORE END
USED ON MF203, 205,2135, 20 INDUSTRIAL, 135 ORCHARD, (202, 204 ALL SN303158 AND UP) 35 UTILITY TRACTORS. MAY BE USED ON OTHERS.
USE WITH HUB DS61632..
$135.56
D708574M92
SPLINED BORE, PUMP DRIVE SHAFT.
3/4-10 NC LH THREAD.
11.62" LONG.
13 TOOTH SPLINE COUPLER.
USED ON MF40 INDUSTRIAL TRACTORS
USE WITH HUB DS61632..
$156.98
D729563M91
SPLINED BORE PUMP DRIVE SHAFT.
3/4-10 NC LH THREAD.
12.5 " LONG.
13 TOOTH SPLINE COUPLER.
USED ON MF20C, 30B, 30C, INDUSTRIAL
USE WITH HUB DS61632..
$137.65
D729566M91
SPLINED BORE PUMP DRIVE SHAFT.
7/8-9 NC LH THREAD.
15.69" LONG.
13 TOOTH SPLINE COUPLER.
USED ON MF50C, 50D, INDUSTRIAL
USE WITH HUB DS61639
$162.34
D707166M92
SPLINED BORE PUMP DRIVE SHAFT.
7/8-9 NC LH THREAD.
14.00" LONG.
13 TOOTH SPLINE COUPLER.
USED ON MF30, 3165 INDUSTRIAL, (165, 175 ) ,(100,200,235,236,32,34WITH LOADERS)
USE WITH HUB DS61639
$159.18
D190495M93
SPLINED BORE PUMP DRIVE SHAFT.
7/8-9 NC LH THREAD.
15.62" LONG.
13 TOOTH SPLINE COUPLER.
USED ON MF40B, 50A,INDUSTRIAL
USE WITH HUB DS61639

$175.61



DS42905
Tachometer drive assembly for generators.  Fits TO 20, TO 30, TO 35 MF35, MF135.  May work on other MF gas models.

$56.16



DS61052 ---To fit American tractors.
Fuel tank, sender, fuel gauge kit.  Fits MF135, MF2135 with Perkins engine.

Parts to service tank kit:DS41748 Tank, DS41520 Cap, DS41406 Gauge, DS41098 Sender.

E-MAIL or CALL FOR PRICE

DS42744
Fuel tank only.  Fits TO35, MF35, MF135, MF2135 Gas tractors with Z134 and Z145 gas engines. Fuel caps and sender gasket and plate must be ordered extra.

Fuel sender Blanking cap & gasket #DS42904
Fuel Cap #DS65819

$325.25






$ 11.08
$8.78



DS41333
Reservoir for glow plug.
Used on TO35, with 23C engines, & MF35 with Perkins diesel engines
Replaces MF891969M1

$15.02

DS40775
PTO input shaft for 8 speed transmission. 17 Tooth, 25 spine. 8 1/2" long. Fits many of the later MF135, 235, 230, 245, 265 and some others.

Replaces MF 1868531M91 Shaft

Requires seal # D1860011M

$380.89

D1860011
Seal for S40775 input shaft.

Replaces MF # 1860011M1 seal

$7.35

DA1871924M1

Drive Fuse Coupling
10 Spline, 3.81" long. Multiple holes through body to fit different tractors. Single groove around outside.

Fits TO35, MF35, MF40, MF50, MF65 ,MF135, MF230, MF231, ,F240, MF245, MF265, and many others does not fit the late import MF tractors

$60.05

DS43249

Brake lock kit.
Fits TO35, MF35, FE35, F40, MF50, MF135, Mf235 and others.

Replaces parts # 181450M1, 181449M1, & 180809M1

$19.95

DS40533

Oil filter head adapter kit. Includes filter, filter head, & gasket
Used to replace old filter cartridge canister systems.
Fits MF35, 135, 235,240,245, and most 3 cylinder Perkins diesel and gas engines.
This is a neat clean kit!

$29.78

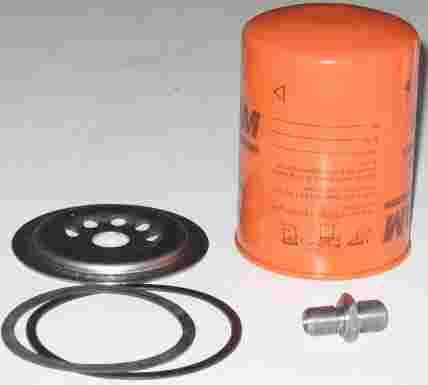

DS42809

Spin on filter kit to replace old canister filters on MF35 & MF135 tractors. Will fit all Z134 or Z145 engines.
Makes oil changes a snap!

$36.76

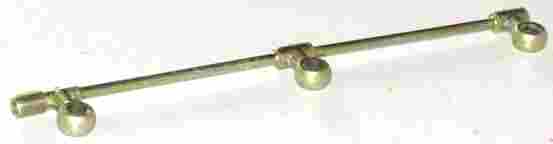

B1538
Diesel injector return line.
Fits MF135 and most direct injection 3 cylinder perkins engines
Replaces 737180m91 & 35587359
Alum. seal washers used with this return line are part number 0920126

$44.23



Note: Manufacture's name brands and part numbers are used for identification purposes only. All parts are new unless stated and are from our major aftermarket manufactures.
